Product Description
GMP Excelam 1100Swing Roll Laminator (Refurbished)- Serial #2503-4527
Why consider buying a refurbished machine from KLAI-Co Identification Products, Inc.?
- KLAI-Co is a manufacturer of roll laminator
- KLAI-Co is GMP Ltd. preferred partner/master distributor in the US for GMP Excelam Swing Roll Laminators
- KLAI-Co strips the machine down to the frame and rebuilds the machine from frame up
- KLAI-Co installs all new electronics when rebuilding machine
- (Main PC Board, Control Panel, Heat Sensors, Motor, & Transformer)
- KLAI-Co installs (4) new rollers (2 Front and 2 Rear)
- KLAI-Co meticulously tests each machine to ensure that it is running and preforming as if it were a brand new machine.
- KLAI-Co is so confident in its rebuild process, we offer the same warranty on our refurbishment machines as we do on brand new machine.
- Essentially, you are buying a mechanically & electronically new machine with the bumps and bruise normally resulting from normal use. Cosmetically, the most wear on a machine is where the feed table going on and off the machine.
If needed, please call KLAI-Co for the exact specifics on this machine's rebuild. We are also more than happy to schedule a FaceTime call and let you view the machine firsthand.

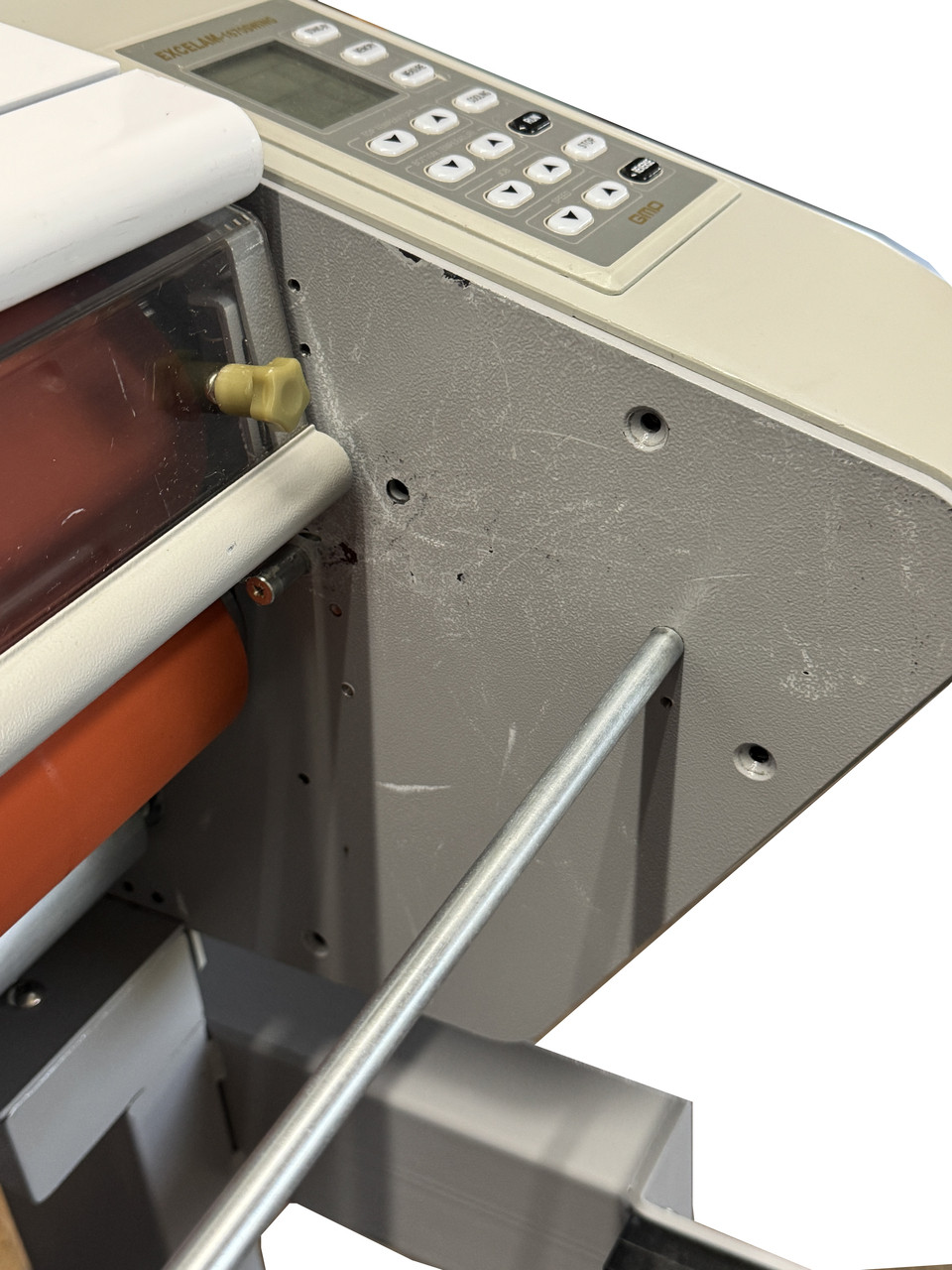

All images shown below are of this machine, serial #2503-4527
Shipping cost not included in price and will be quoted based on delivery address.
Product Description
The GMP Excelam 1100Swing wide format roll laminator is designed to offer a user-friendly, high quality, cost effective laminating solution for both beginners and experts. The GMP Excelam 1100Swing is a 45" roll laminator that incorporates top and bottom heated rollers with independent heat controls allowing for single sided laminating, encapsulating and cold laminating. It features a roller gap control that accommodates mounting up to 1/2" in thickness, a user-friendly keypad that allows the operator to easily adjust speed and temperature, an auto shutoff and standby functions for energy efficiency, a swing film shaft for easy loading, programmable settings for repeat jobs and more. These features, along with its comprehensive system, ensures a professional finishing job, thermal or cold, every time making it ideal for schools, offices, copy and print shops.
KEY FEATURES:
• Dual Temperature Controllers
• Variable Speed Control
• 1/2" Mounting Capable
• Horizontal End Trimmer
• 3” Diameter Silicone Heated Rollers
• Cooling Fans
• Auto Shutoff
• 220 Volt Machine
• 1 Year Warranty (Same As New)
• Ships LTL
| Specifications | |
|---|---|
| Width | 45" |
| Film Gauge | 1.5 to 10 mil |
| Speed Range | 0-10 fpm |
| Heating Method | Heated Roller |
| Speed Control | Variable |
| Temperature Control | Variable |
| Temperature Controller(s) | Dual |
| Ready Light | Yes |
| Auto Shutoff | Yes |
| Reverse Function | Yes |
| Mounting Capability | 1/2" |
| Roller Gap Adjustment | 7 Position |
| Core Size/Core Adapter | 3" |
| Heat Roller Diameter | 3" |
| Heater Type | Quartz |
| Display Type | Digital |
| Safety Shield | Yes |
| Safety Shield Safety Switch | Yes |
| Key Pad Control | Yes |
| Warm Up Time | 15 Minutes |
| Slide Away Lower Roller Ideal Bar Release Mechanism For Easy Film Loading | Swing Out Boom |
| Cooling Fans | Blower |
| Built-in Horizontal Trimmer | Yes |
| Cold Lamination (PSA Rewind) | Yes |
| Power | 220 Volt/60 Htz |
| Wattage/Amps | 3900 Watts/16 Amps |
| Dimensions | 58.5" x 27" x 51" |
| Weight/Ship Weight | 763 Lbs Crate |
| Ships Via | LTL Only |
| Country of Origin | South Korea |
| Safety Approval | UL/CUL/CE |
| Diameter of Feet (For Cabinets) | Stand Included |
| Warranty | 90 Day- 1 Year Parts |
| Feed Table | Aluminum Feed Tray |
| Feed Table Alignment Guide | Yes |
| Feed Table Safety Switch | Yes |
| Mandrel Type | Swing Out Boom |
| Foot Pedal | Yes |
| Key Lock | Optional |
| Standby Mode | Yes |
| Job Position (Memory) | 9 |
