Product Description
With the Akiles DuoMac 421 you can bind documents with both 4:1 pitch spiral coil and 2:1 pitch twin loop wire. The DuoMac 421 is the only combination machine of its kind. The unique design of the 421 includes a the ability to punch both a 4:1 pitch hole pattern for spiral coil binding and a 2:1 pitch hole pattern for twin loop wire binding up to 1-1/4". This gives you the ability to choose the look and feel of your coil bound books and presentations. Four to One pitch coil (4 holes per inch) is the standard pitch of spiral coil used for binding presentations, proposals and books. Normally, you would have to use two different binding machines to do the same tasks as the DuoMac 421. Now you can choose between these two great binding styles for all your reports and presentations and you can also save space, time and money.
Please note that the Akiles DuoMac line of Binding Machines are assembled on a per order basis and normally take two to three days to ship.
Product Details

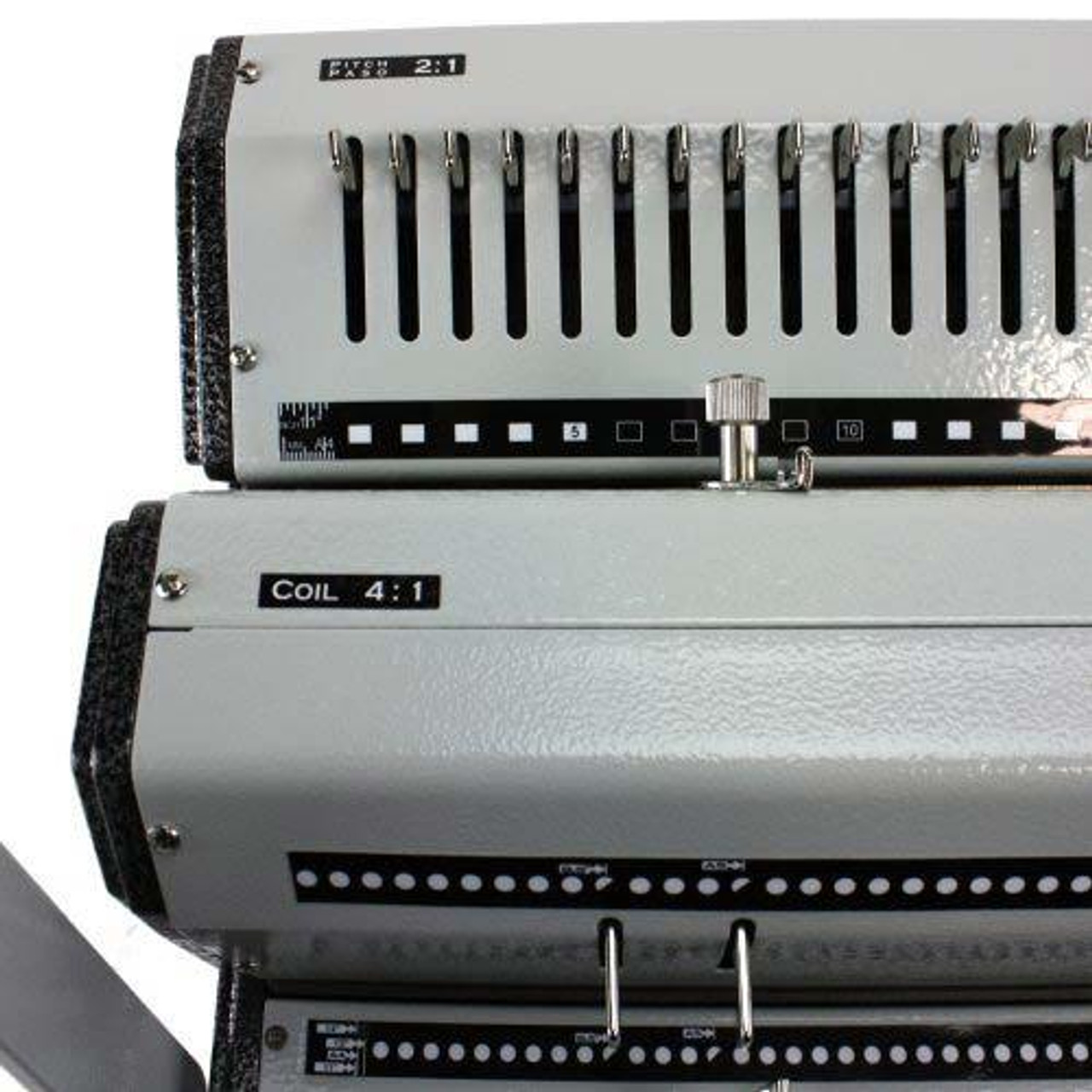

- Two punching throats. One for 4:1 pitch spiral binding coils and one for 2:1 wire-o (rectangular 4 x 5.5mm).
- Incorporated wire closer.
- Three handle system. One for each punching throat and one for the wire closer.
- All pins on both punching patterns are fully disengageable.

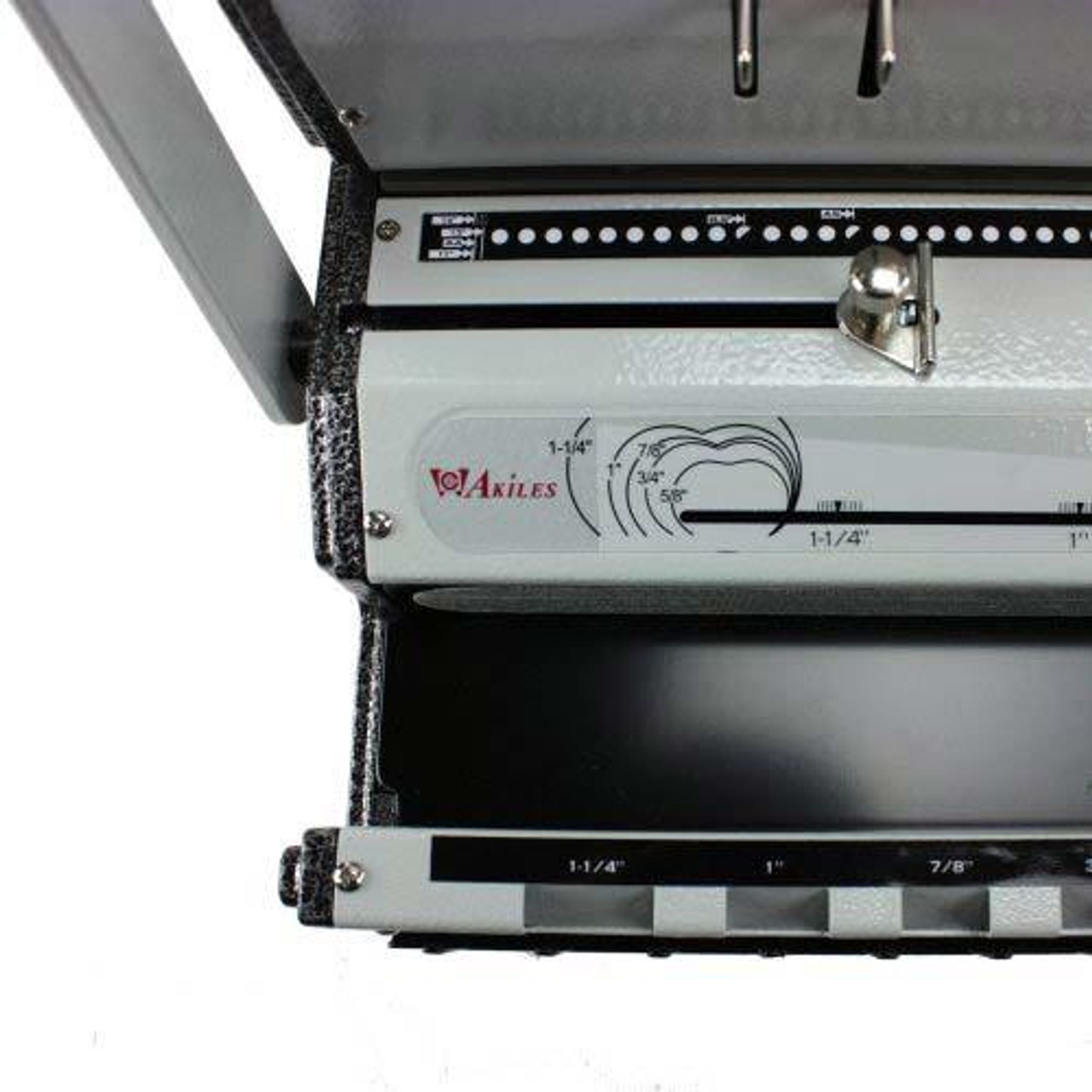

- Side margin control to provide evenly centered holes.
- Integrated wire hanger holds wire in-place for easy page hanging.
- Open-ended 14" punching throats for longer pages.
- Punches and binds for the full set of combs to 2", 3:1 pitch Wire-O wires to 9/16", and Spiral-O wires to 1".
Item Specifications
- Binding Style: 2:1 Wire-O Binding, Plastic Spiral Coil
- Punching: Manual
- Binding: Manual
- Punching Capacity: 20 Sheets
- Compatible Supplies & Accessories: Plastic Spiral Binding Coils, Wire-O Twin Loop 2:1 Bindings
- Dimensions: 26" D x 20" W x 20" H
- Punch & Bind Capability: Yes
- Maximum Binding Edge: 14" [With Open-Ended Punch For Edges up to 28"]
- Open Ended Punch: Yes
- Throat Depth: Adjustable
- Disengageable Pins: Yes, All
- Pitch / Hole Pattern: Combo [Spiral Coil & Wire]
- Actual Machine Dimensions (L x W x H): 15-3/4" x 16-1/2" x 19"
- Shipping Length: 19"
- Shipping Width: 21"
- Shipping Height: 13"
- Shipping Weight: 64.1 Lbs.
- Manufacturer's Warranty: 1 Year Limited Manufacturer's Warranty
