Product Description

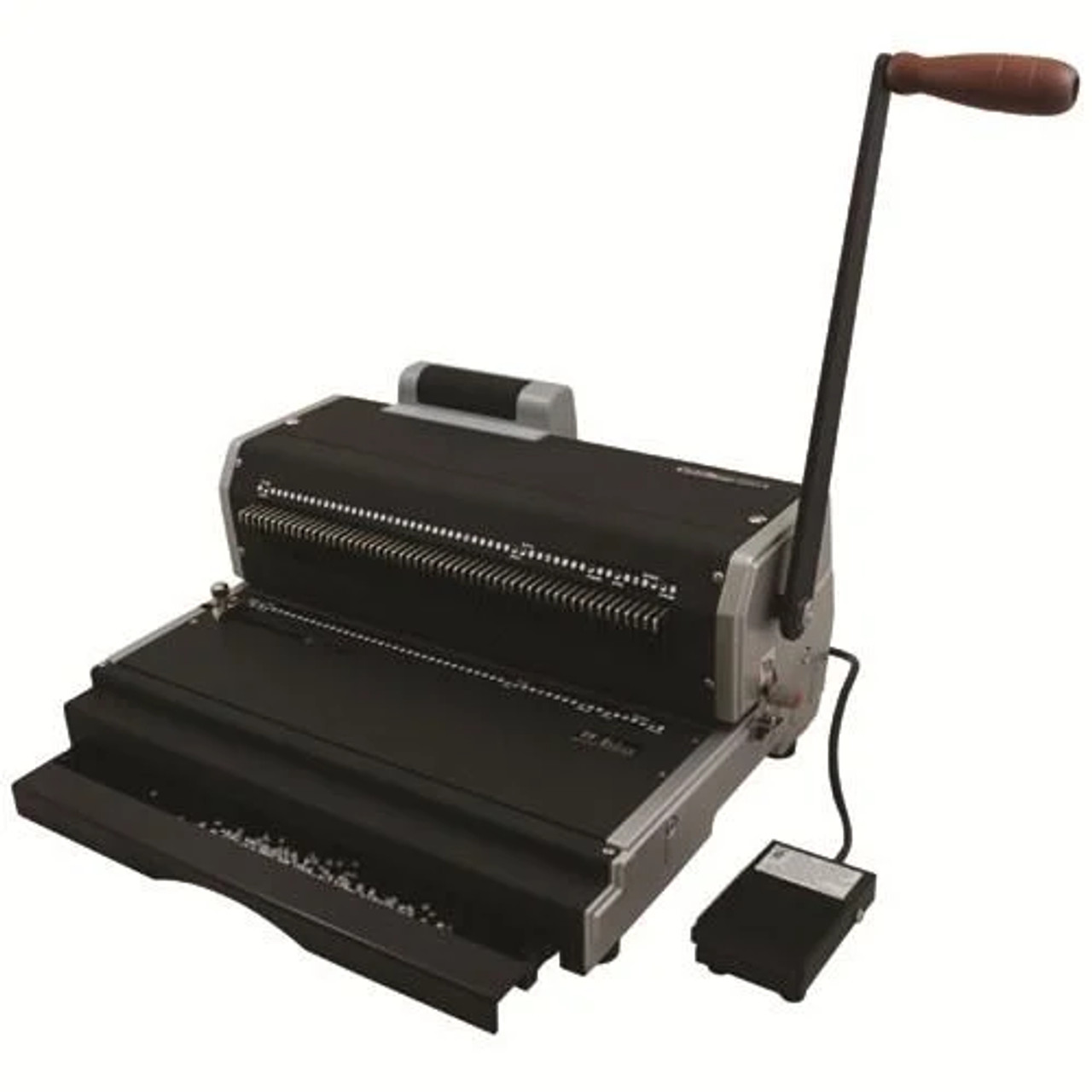

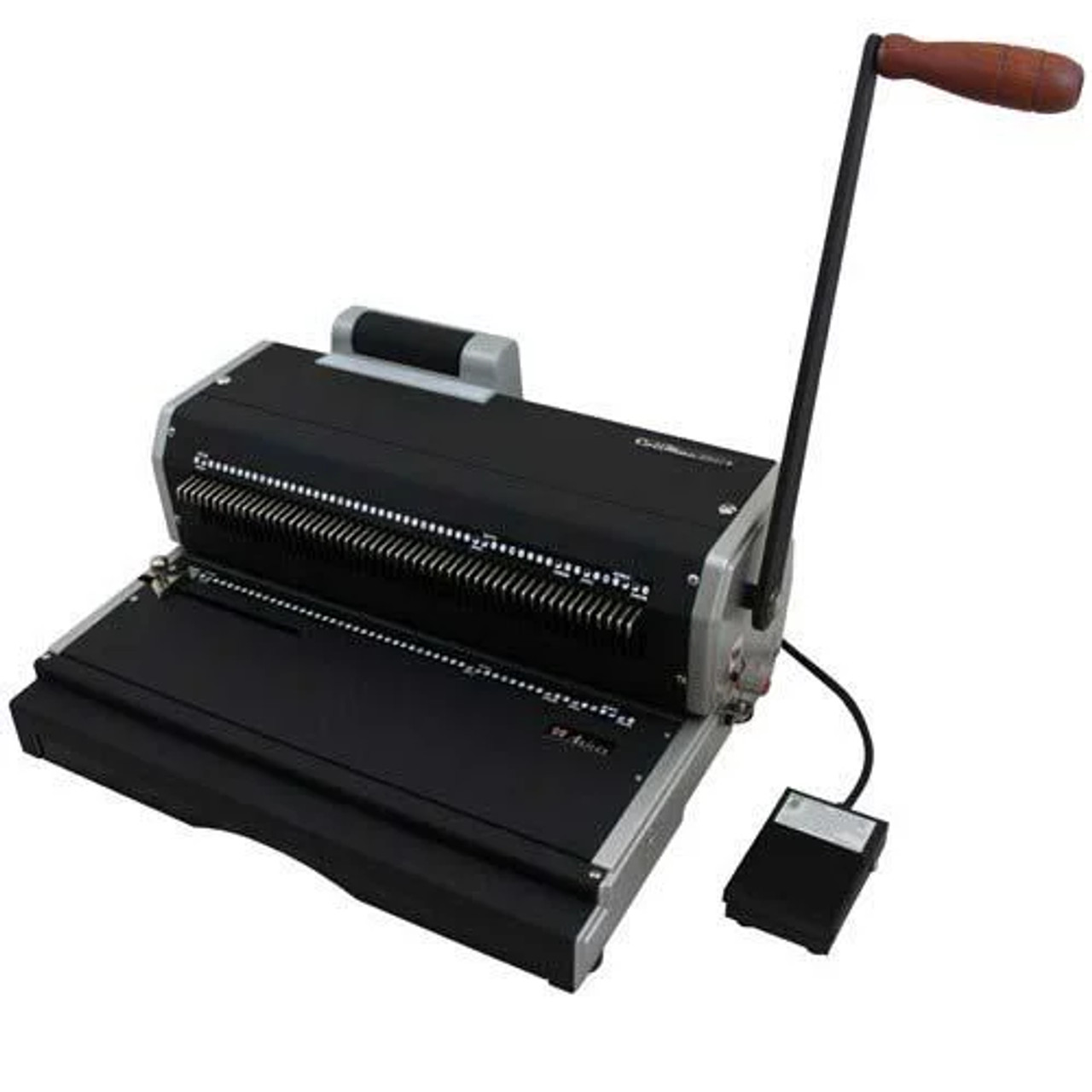

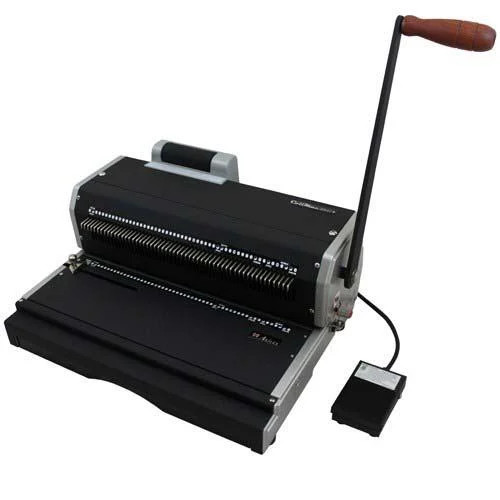

The New Akiles CoilMac ER Plus is a new and improved version of the classic CoilMac ER Manual Spiral Coil Binding Machine. This machine includes the solid construction, electric coil inserter and other great features that have made the Akiles Coilmac ER binding machine famous. However, it provides a number of features that are simply not available on other comparable binding machines. The New CoilMac ER+ offers 4mm x 5mm oval punching holes to help make inserting coils easier than ever. It also includes fully disengageable punching pins to allow you to punch virtually any document length. Plus, the Coilmac-ER-Plus offers a 0.248 pitch to help ensure that the holes aren't too closer or too far away from the edge of the paper. Like the orginal CoilMac ER, this system is easy to use, and will punch up to 20-sheets at a time utilizing the 4 to 1 coil punch die. Plus a small electric roller is mounted on the top of the machine to help with spinning your coils onto your documents. The Akiles CoilMac-ER+ makes coil binding fast, easy and professional, making it the ideal partner for medium volume workloads.
Product Details
- Extended Single Punching Length (13"): With open ends & continuous punch guide to easily punch documents of any length (up to 26").
- High Volume Punch Capacity: Suggested up to 20-sheet* for 20 lbs paper, or 2.6mm (28-sheet equivalent)** for hardboard, in 13" length (53 holes).
- Super Strength Punch Mechanism with exclusive "Precision Guiding SystemTM" Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive "precision guiding system" guarantees a sharp & clean perforation everytime.

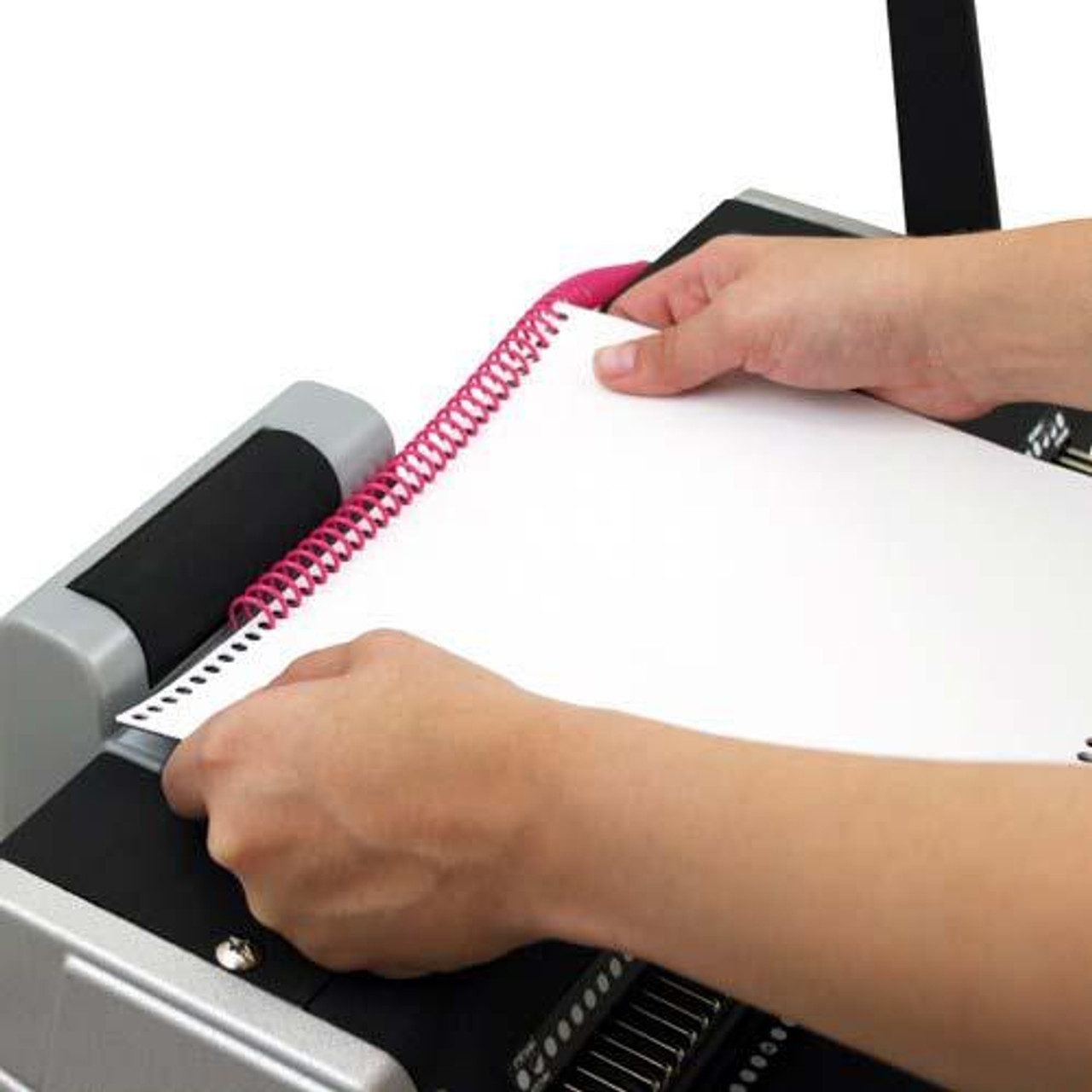

- Top Electric Roller Coil Inserter (Foot Pedal Operated): This easy to use and durable roller makes coil inserting surprisingly fast and easy. It is strategically placed on the left side of the machine so your coil will clear the punch handle while you are inserting.

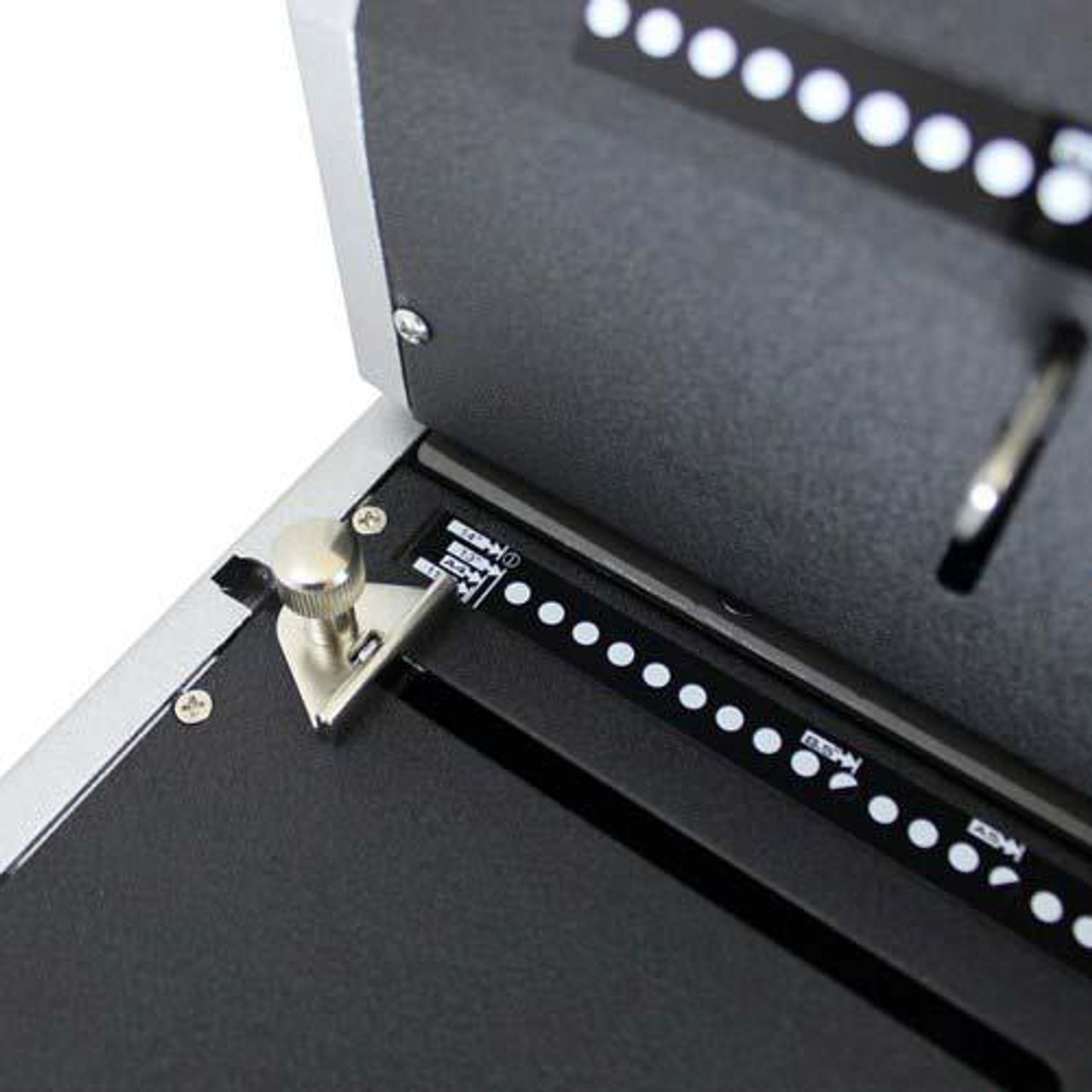

- Side Margin Control: Provides an evenly centered punch for all document sizes.
- Punching Margin Control: Provides the correct punch-margin-depth for each coil size and maximizes the document's tear resistance.
- Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26".
- Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.
- Large Waste Drawer and Non-Skid Feet
- CE Certification: All components certified & approved by CE for most stringent safety requirements
- ISO9001 & 14001 Quality: Manufactured under ISO9001 & 14001 guidelines for highest quality control & environmental management standards.

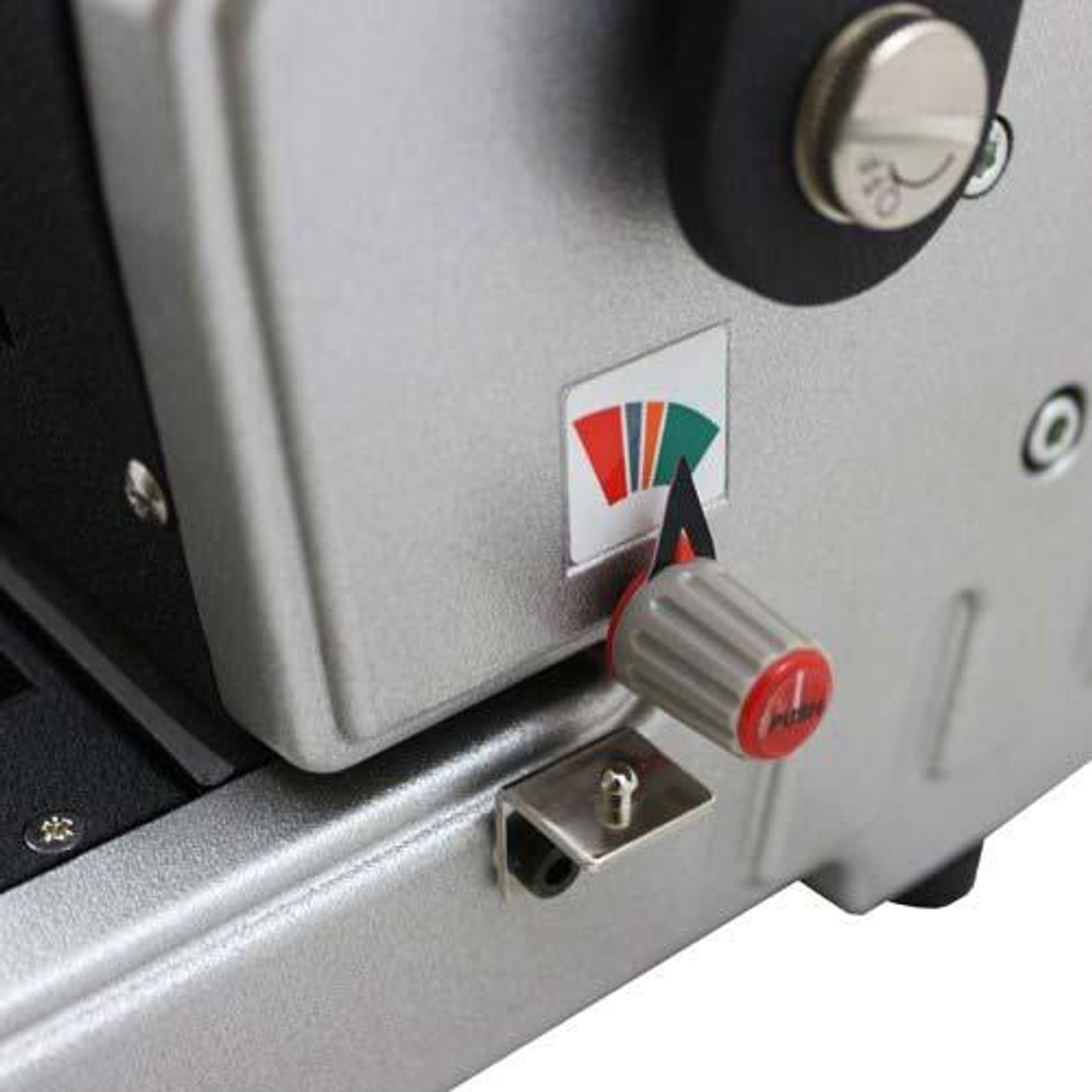

- Includes Coil Diameter Selector
- OVAL holes: Special 4 x 5mm oval holes. The first & only equipment of its class to offer this advanced feature. Makes coil insertion much faster as compared to standard round holes. When used together with our HD Electric Coil Inserter, it will drastically save your coil insertion time by up to 50%.
- FULLY Disengageable Pins: For a completely clean & professional punching of any paper size, all 54 pins can be independently pulled & disengaged.
- LETTER 4:1 pitch (0.248"): This revolutionary 0.248" coil pitch is specifically designed to give you 44 evenly-centered holes in an 11" sheet, which provides the most ideal hole to edge-of-sheet margins and easier coil insertion. Hole pattern is 100% compatible with STANDARD 4:1 pitch coils.
Item Specifications
- Model: CoilMac-ER+
- Pitch: Letter 4:1 (0.248")
- Operation: Punching - Manual
Inserting - Electric (with built-in Electric Roller) - Inserting: Electric
- Hole Punch: Oval (5mm x 4mm)
- Disengaging Dies: Full
- Single Punching Capacity: Up to 20 sheets for 20 lbs paper*
Up to 2.6mm for hardboard
(28-sheet equivalent thickness)** - Compatible Supplies: Plastic Spiral Binding Coils
- Binding Capacity: Up to 7/8" (electric)
Up to 2" (manual) - Weight / Volume: 38 lbs & 2.5 CbFt
- Actual Machine Dimensions (L x W x H): 21" x 14" x 18-1/2"
- Shipping Length:18"
- Shipping Width:21.5"
- Shipping Height:11"
- Shipping Weight:38Lbs.
- Manufacturer's Warranty: 1 Year Manufacturer Manufacturer's Warranty
- * = To avoid operator's fatigue, our punch throat shield has been set to accept up to 20 sheets only, based on average person's arm stength.
- ** = To punch thicker materials (such as hardboard), simply remove the punch throat shield & proceed to punch.
